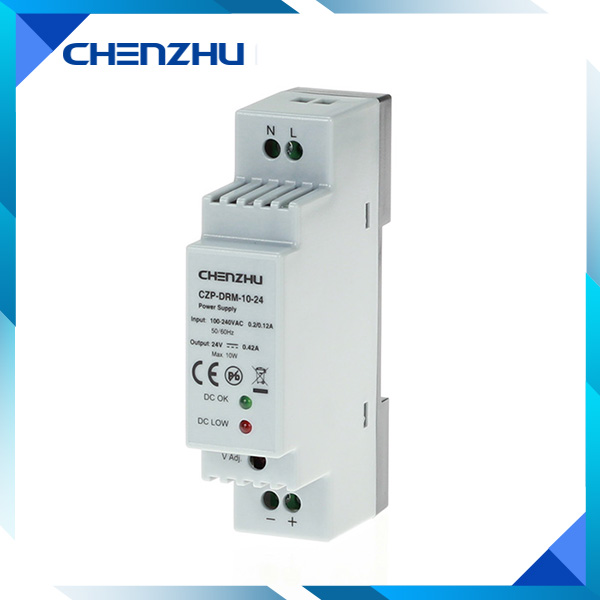

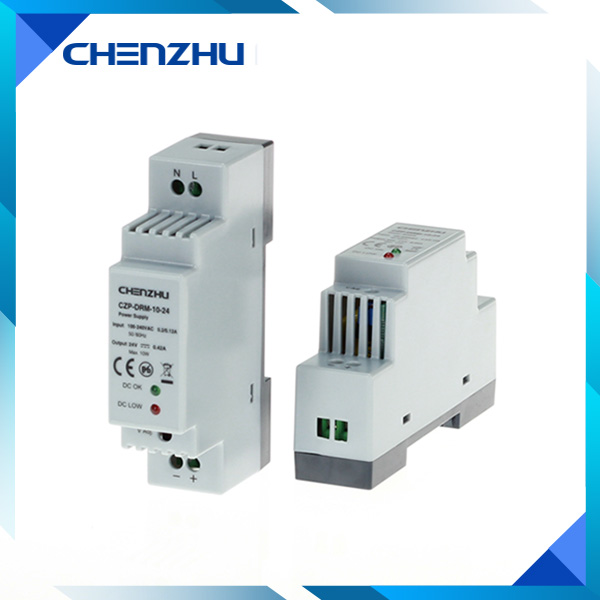

DIN Rail Tpye Power Supply 10W/24V Output
CZP-DRM-10-24  DIN Rail Tpye Power Supply 10W/24V Output

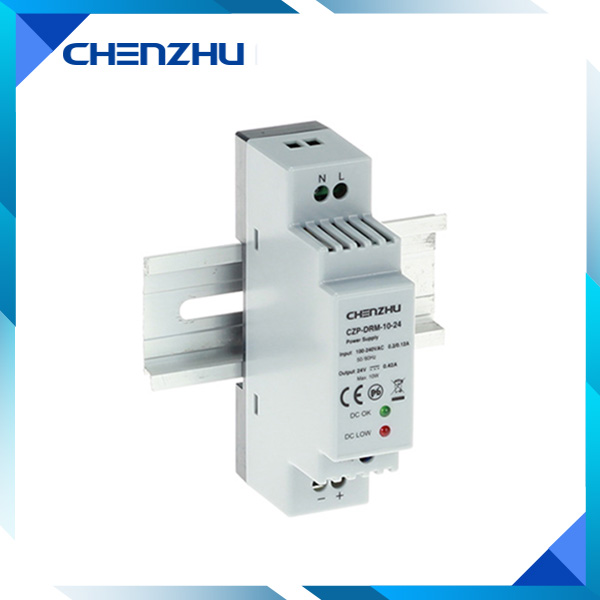

Designed for building automation application,Simple snap-on to DIN TS35/7.5 or TS35/15 rail system,Universal AC full range input.Safety Function:Overvoltage /Overload/Overcurrent/Overtemperature,Parallel and Serial function,5 years warranty.
Nominal Output Voltage:
24V
max. Load Current:
0.42A
CZP-DRM-10-24
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

DIN Rail Tpye Power Supply 10W/24V Output

DIN Rail Tpye Power Supply 10W/24V Output



Product Name  CZP-DRM-10-24 Power Supply
Adjustment Output Voltage Range  24~28VDC
max. Load Current  0.42A
Parallel/ Serial function  Yes
Adjustment Input Voltage Range  85~264V AC or 120~370V DC
Max. Output Power  10W





DIN Rail Tpye Power Supply 10W/24V Output

DIN Rail Tpye Power Supply 10W/24V Output

DIN Rail Tpye Power Supply 10W/24V Output

DIN Rail Tpye Power Supply 10W/24V Output

DIN Rail Tpye Power Supply 10W/24V Output


Output Data
Input Data
Safety Function
Dimensions
Housing
Environmental
General
Standard/Specification
产品参数
Output Data
Max. Output Power 10W
Nominal Output Voltage 24V
Adjustment Output Voltage Range 24~28VDC
max. Load Current 0.42A
min. Current 0.1A

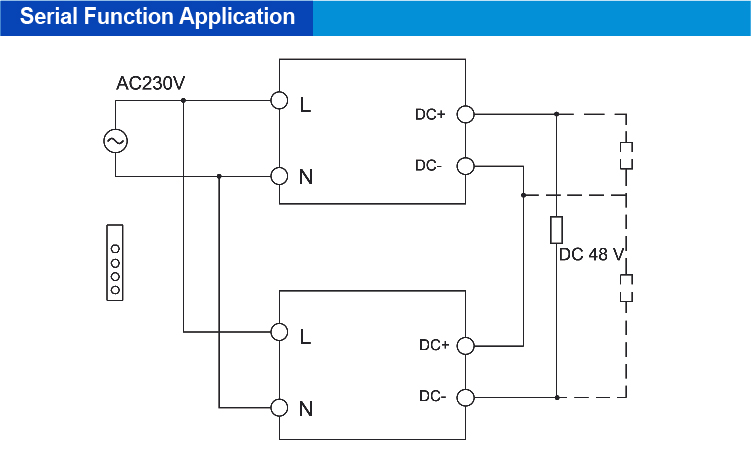

Parallel/ Serial function Yes
Ripple/Noise 20 mVpp,max
Line Regulation 0.01
Load Regulation 0.01
Hold-up time 20 ms @ full load, 230 VAC
Indicator LED Indicator for DCOK/DC LOW
Input Data
Nominal Input Voltage 100~240V AC
Adjustment Input Voltage Range 85~264V AC or 120~370V DC
Frequency 47~63Hz
Input Current 0.2/0.12A
Inrush Current 15/30A
Safety Function
Overvoltage Protection 30V
Overload Protection 11W
Overcurrent Protection 0.44A
Overtemperature Protection Yes
Short Circuit Protection Yes

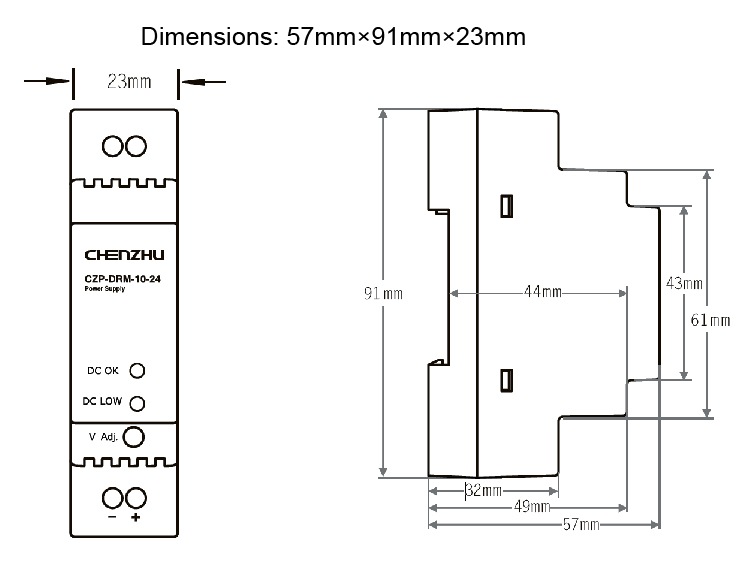

Dimensions
Depth 57mm
Height 91
Width 23
Housing
Material Plastic V0
Degree of protection IP20
Weight 0.07Kg
Colour Gray
Environmental

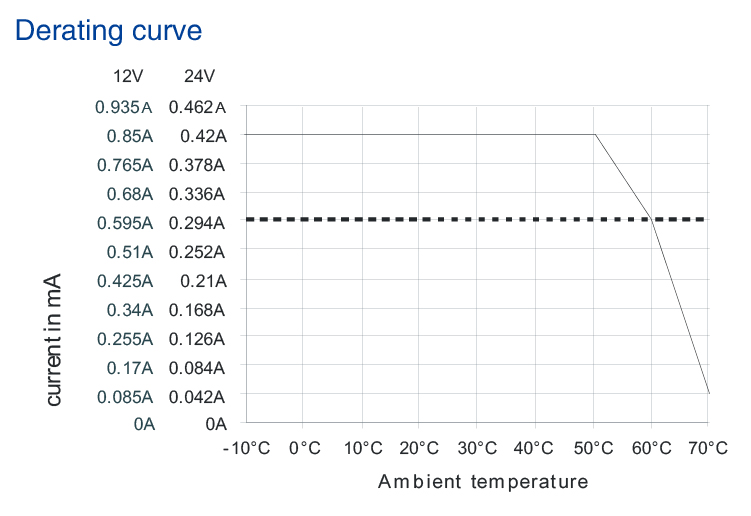

Ambient Temperature -10°~70°C
Storage Temperature -25° ~ 85°C
Relative Humidity 5%~95%
max. Altitude 3000 M
General
Cooling Natural

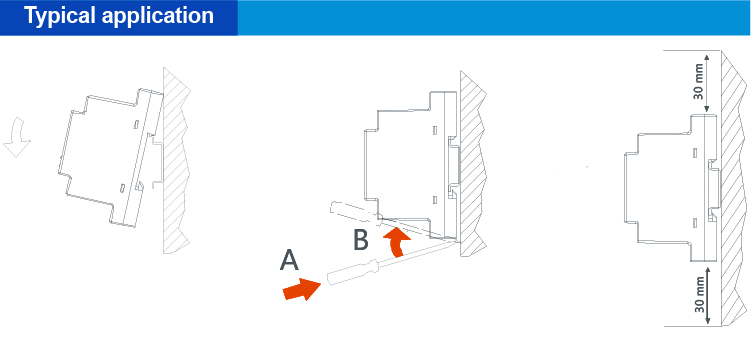

Mounting Type DIN-rail mounting to TS35/7.5or TS35/15.
Fitting Position Vertical
Wiring Data 0.15-2.5 mm² 300VAC
MTBF demonstrated >350,000 hours at full load at 25°C ambient conditions
Standard/Specification
EMC compliance with EMC directive 2004 /108/EC
Harmonic Current Limits compliance with EN61000-3-2, EN61000-3-3
